Components and Components Location: Components: Notes

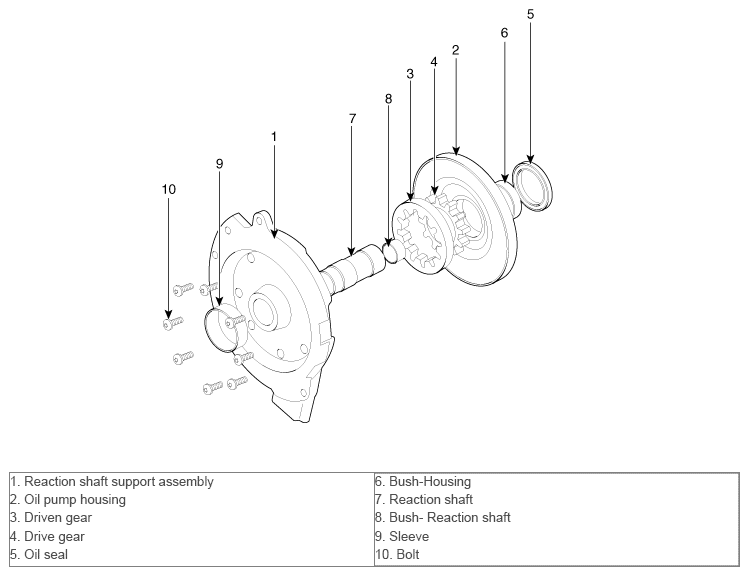

Fig 1: Oil Pump Component Locations
G10367641Courtesy of HYUNDAI MOTOR AMERICA
