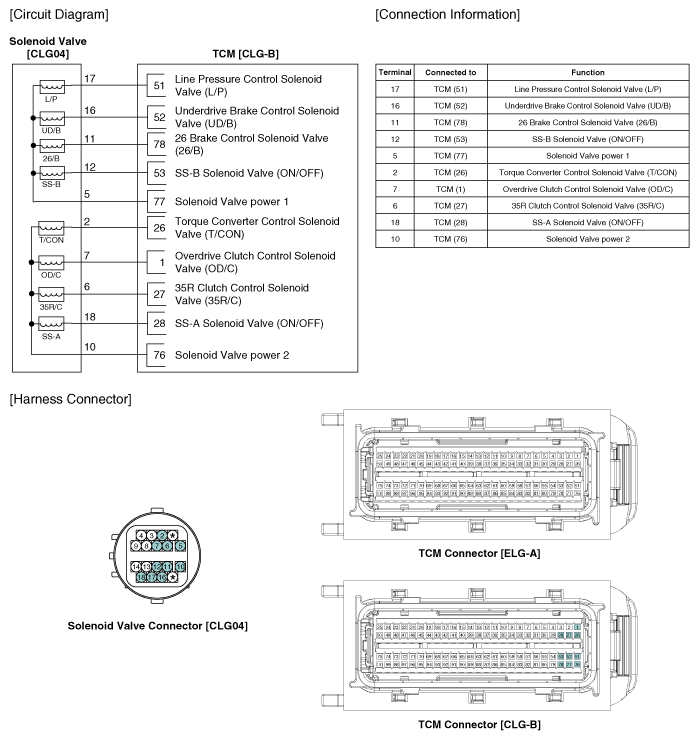

Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › 35R Clutch Control Solenoid Valve(35RC_VFS) › Schematic Diagrams › Circuit Diagram
