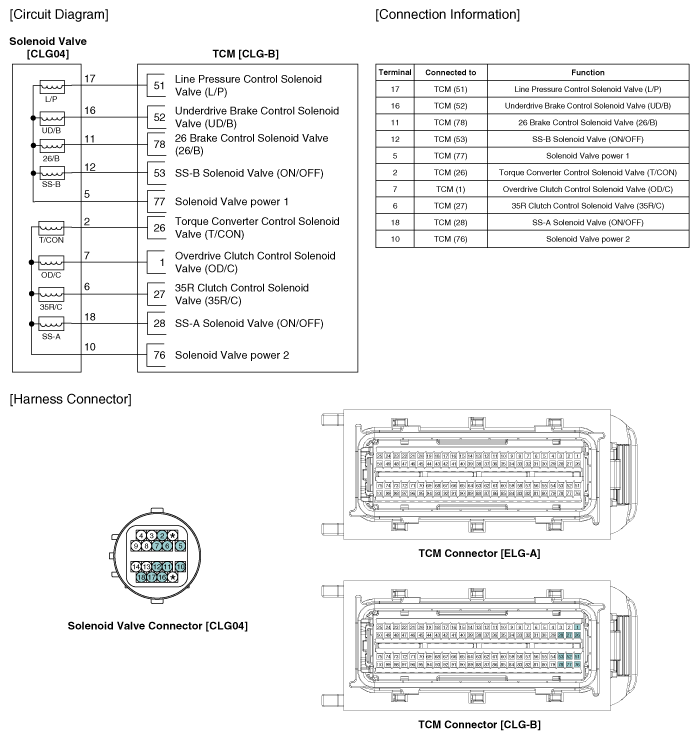

Home › Hyundai › 2016 › Azera Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Torque Converter Control Solenoid Valve (TCON_VFS) › Schematic Diagrams › Circuit Diagram
