Body Dimensions
›
Under Body
›
Body Repair
›
Projected Dimensions
Projected Dimensions

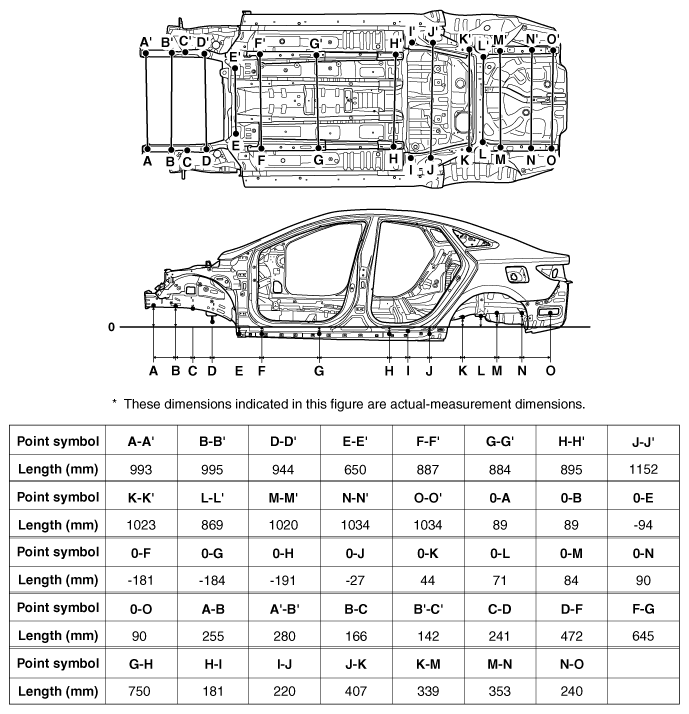

Fig 1: Under Body Dimensions
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Side Cover And Front Subframe Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

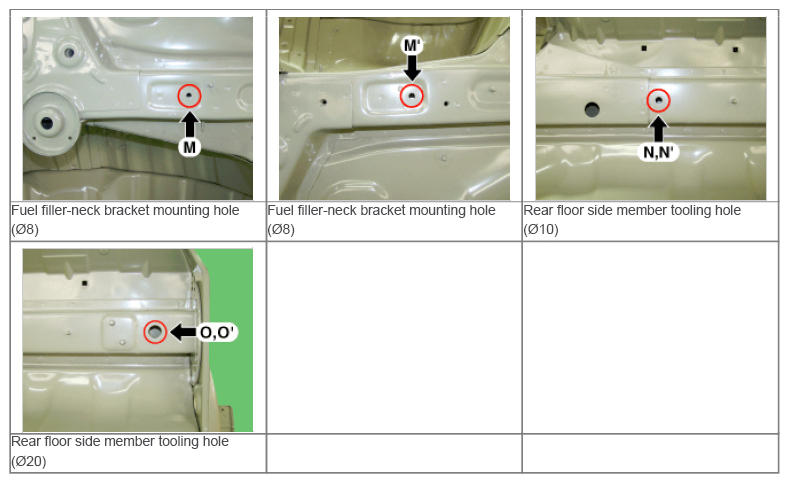

Fig 3: Rear Floor Side Member Tooling Hole
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
