Home › Hyundai › 2016 › Elantra GT Automatic Trans › Repair and Diagnosis (Single Page) › Engine Mechanical › Mechanical › Timing System - 2.0L › Timing System › Components and Components Location › Components

Components and Components Location: Components

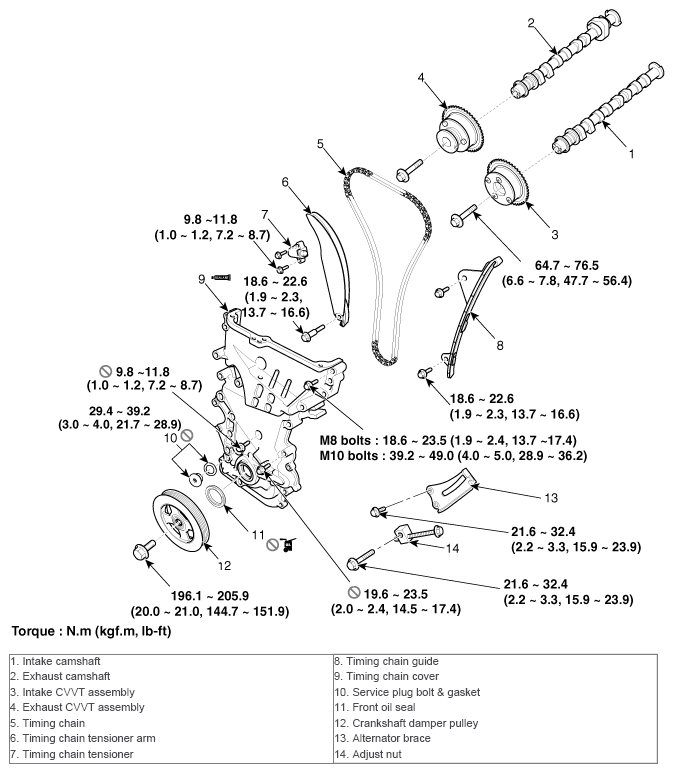

Fig 1: Timing System Related Components With Torque Specifications
G10749325Courtesy of HYUNDAI MOTOR AMERICA
