Components and Components Location: Component

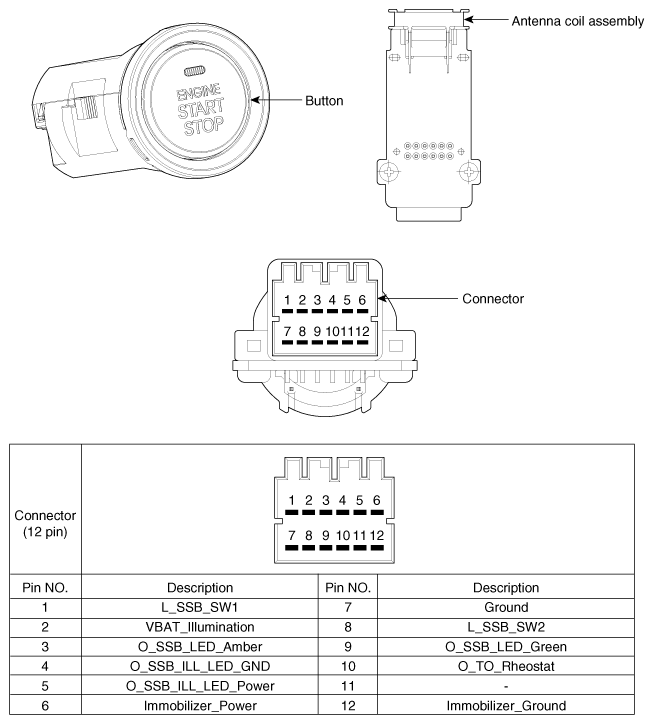

Fig 1: Identifying Start/Stop Button And Antenna Coil Assembly
G10751841Courtesy of HYUNDAI MOTOR AMERICA
