Circuit Diagram: (A/T)

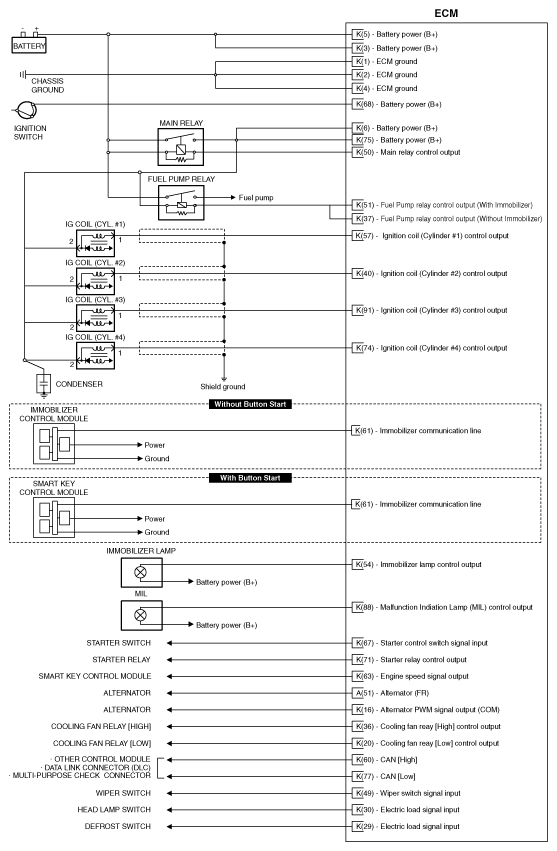

Fig 1: ECM Circuit Diagram (A/T) (1 Of 4)
G10749839Courtesy of HYUNDAI MOTOR AMERICA

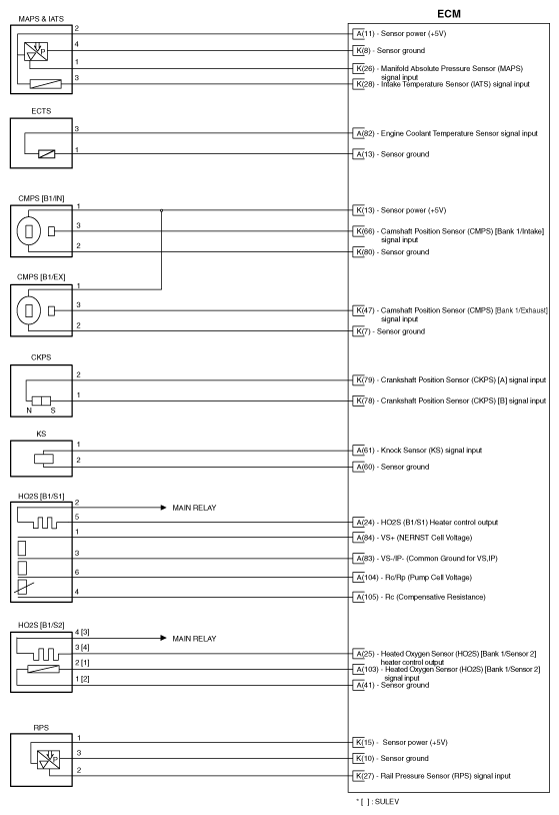

Fig 2: ECM Circuit Diagram (A/T) (2 Of 4)
G10749840Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: ECM Circuit Diagram (A/T) (3 Of 4)
G10749841Courtesy of HYUNDAI MOTOR AMERICA

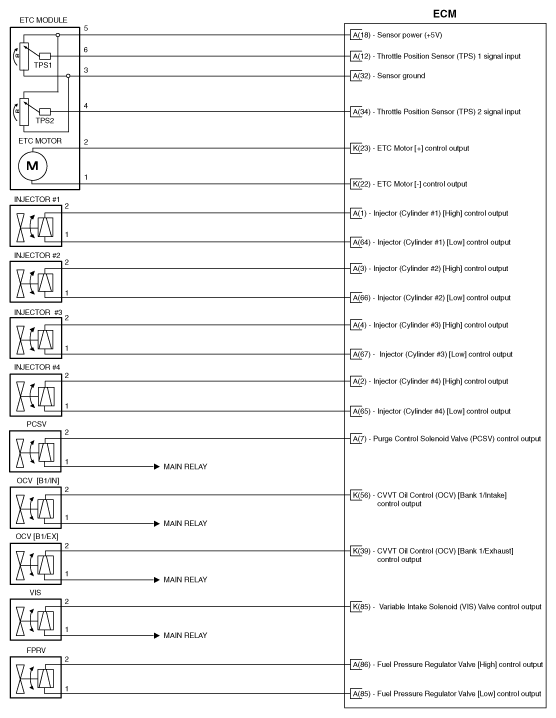

Fig 4: ECM Circuit Diagram (A/T) (4 Of 4)
G10749842Courtesy of HYUNDAI MOTOR AMERICA
