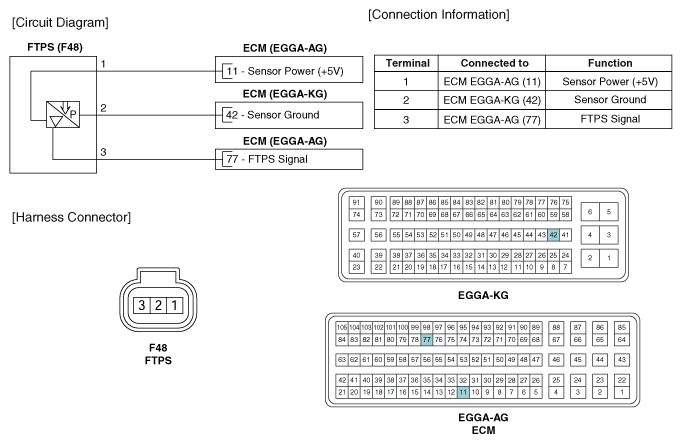

Home › Hyundai › 2016 › Elantra GT Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Fuel Tank Pressure Sensor (FTPS) › Schematic Diagrams › Circuit Diagram › (A/T)
