Components [Full auto]

WARNING: This page is about a different car, the 2016 Hyundai Elantra and 2015 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

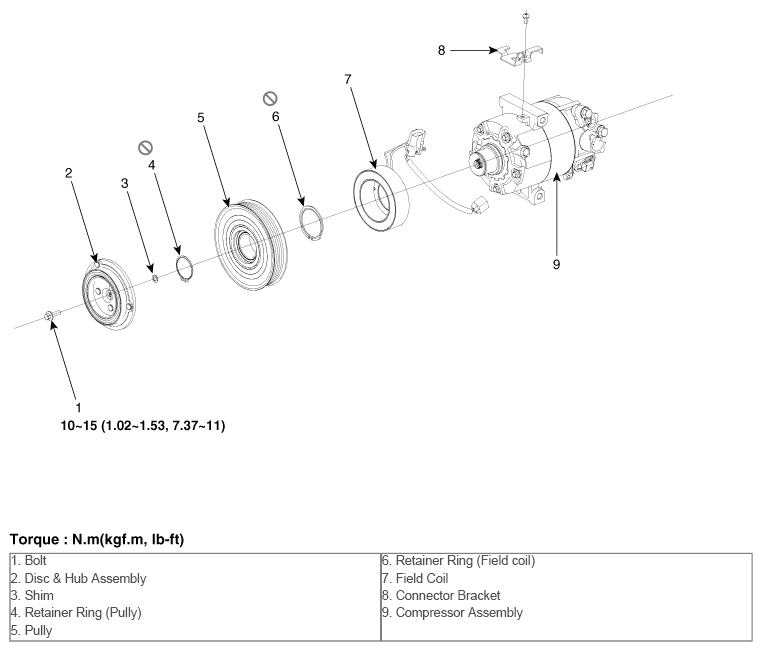

Fig 1: Compressor Components With Torque Specification (Full Auto)

Courtesy of HYUNDAI MOTOR AMERICA
