Components and Components Location: Components: Notes

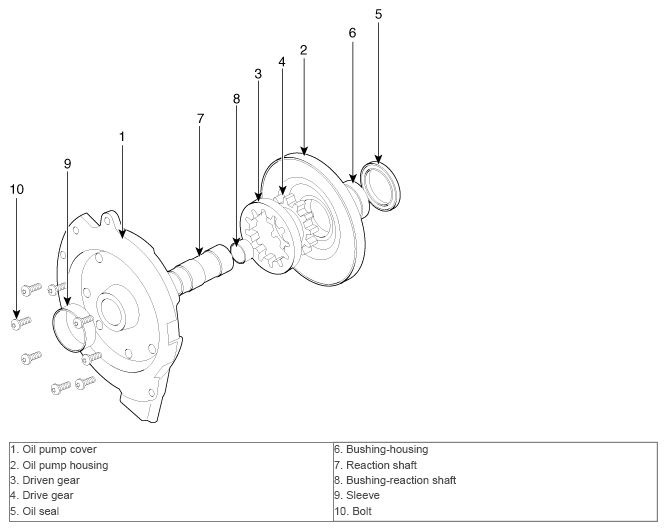

Fig 1: Identifying Oil Pump Components
G10750171Courtesy of HYUNDAI MOTOR AMERICA
