Home › Hyundai › 2016 › Elantra GT Standard Trans › Repair and Diagnosis (Single Page) › Electrical › Body Electrical › OEM Connector End Views (Main Harness) › Connector End Views › Smart Key Control Module Connector End View (M13-C)

Smart Key Control Module Connector End View (M13-C)

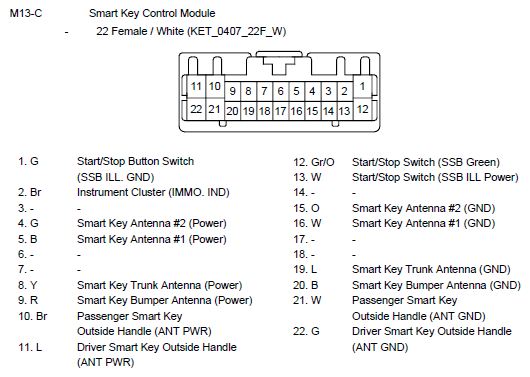

Fig 1: Smart Key Control Module Connector End View (M13-C)
G10787233Courtesy of HYUNDAI MOTOR AMERICA
