Monitor GDS Data
- Connect GDS to Data Link Connector (DLC).
- IG "ON" & ENG "ON".
- Press the brake pedal.

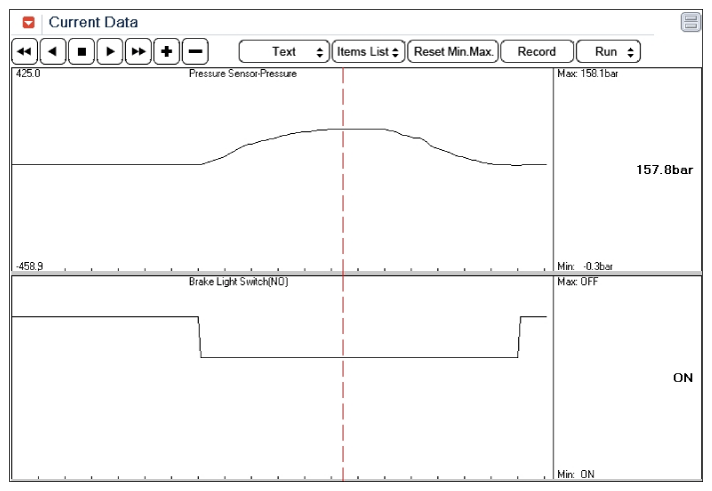

- Monitor the "PRESSURE SENSOR" parameter on the GDS.
Specification: Approx. 60bar ~150bar (There is difference in displayed parameter according to braking force)
- Whenever brake pedal is pushed down, is the pressure sensor's scantool data changed?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
