Components and Components Location: Components

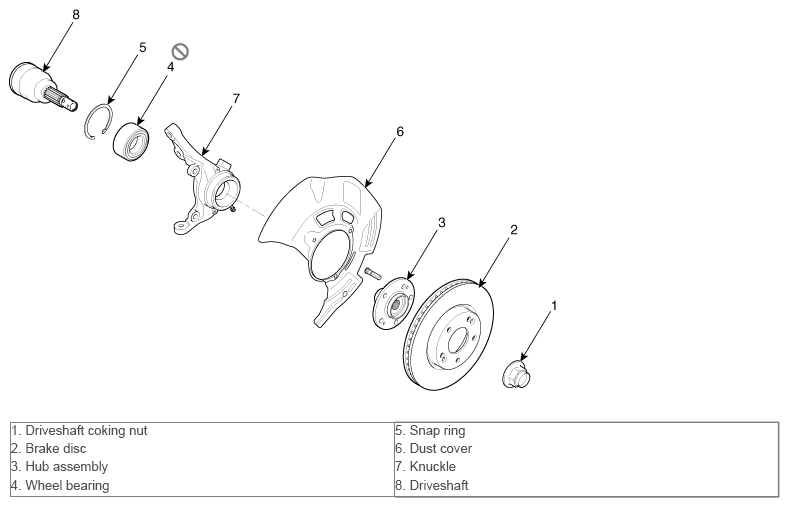

Fig 1: Front Hub/Knuckle Components
G10538088Courtesy of HYUNDAI MOTOR AMERICA
