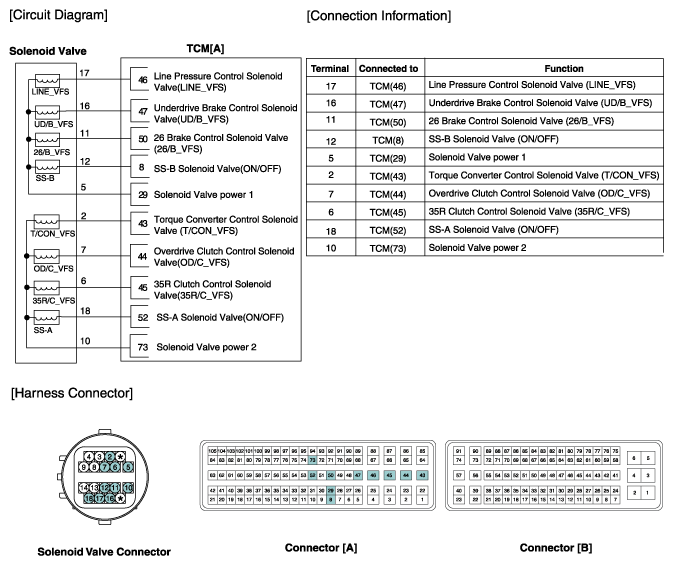

Home › Hyundai › 2016 › Elantra SE, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - A6GF1 › Line Pressure Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
