Manual Transaxle Control System
›
Control Cable
›
Components and Components Location
›
Components
Components and Components Location: Components

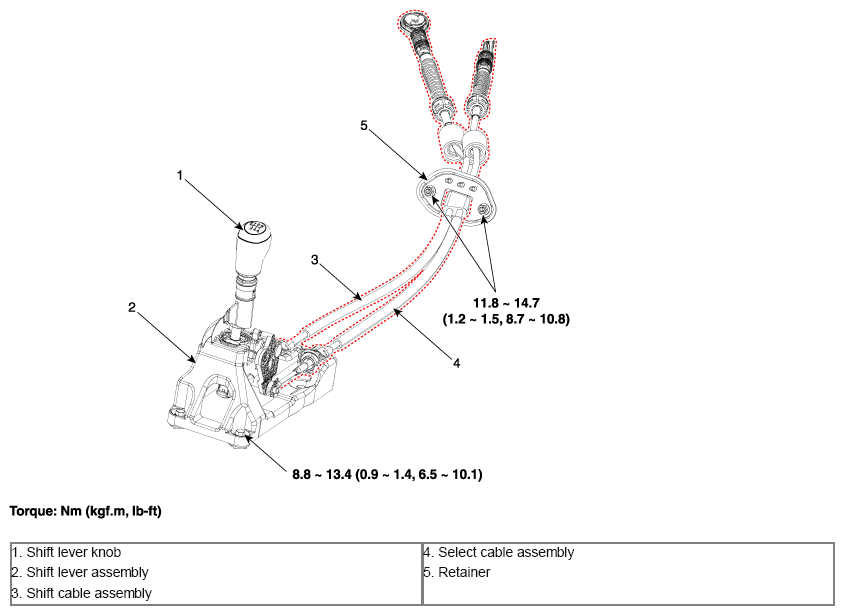

Fig 1: Control Cable Components With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
