Circuit Diagram: (A/T)

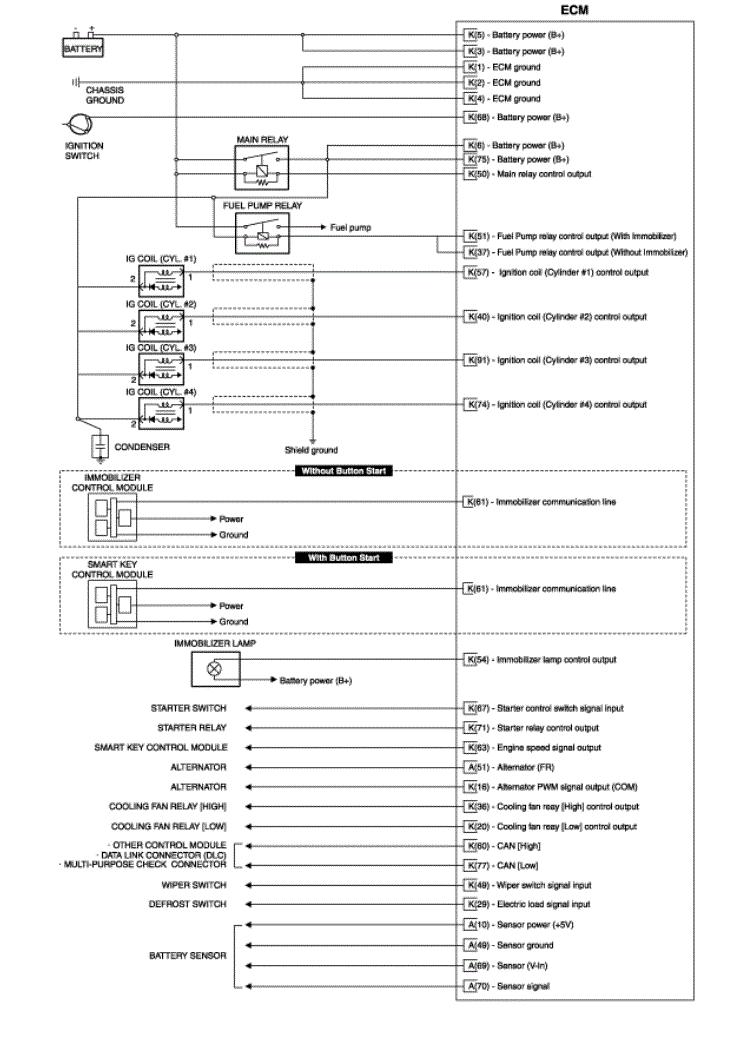

Fig 1: ECM Circuit Diagram (A/T) (1 Of 4)
G00575155Courtesy of HYUNDAI MOTOR AMERICA

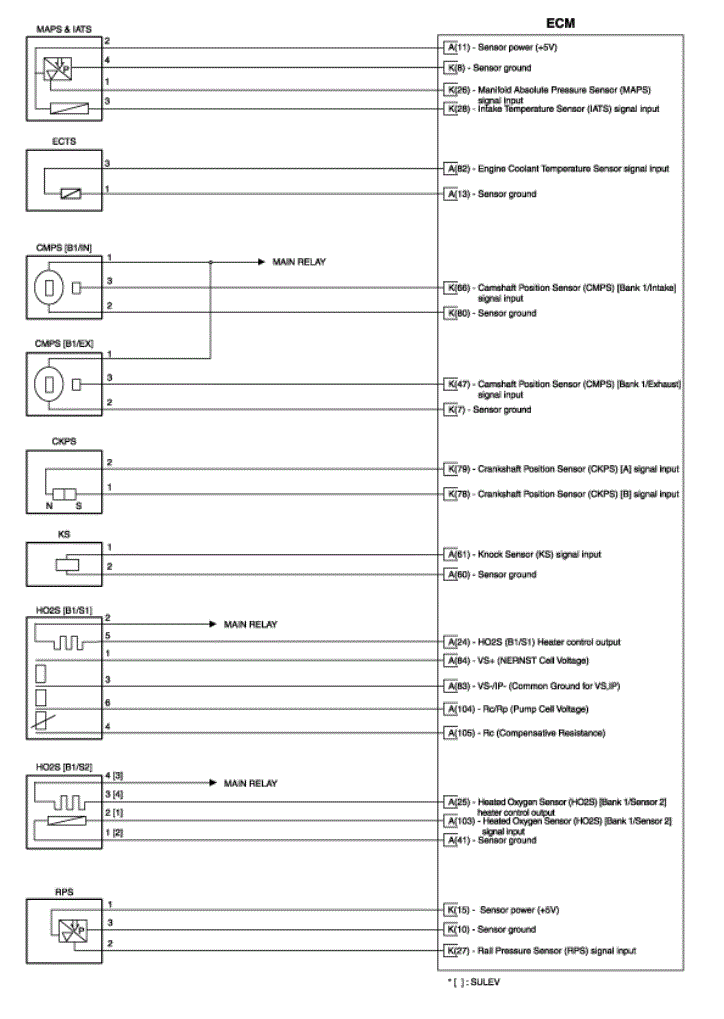

Fig 2: ECM Circuit Diagram (A/T) (2 Of 4)
G00575156Courtesy of HYUNDAI MOTOR AMERICA

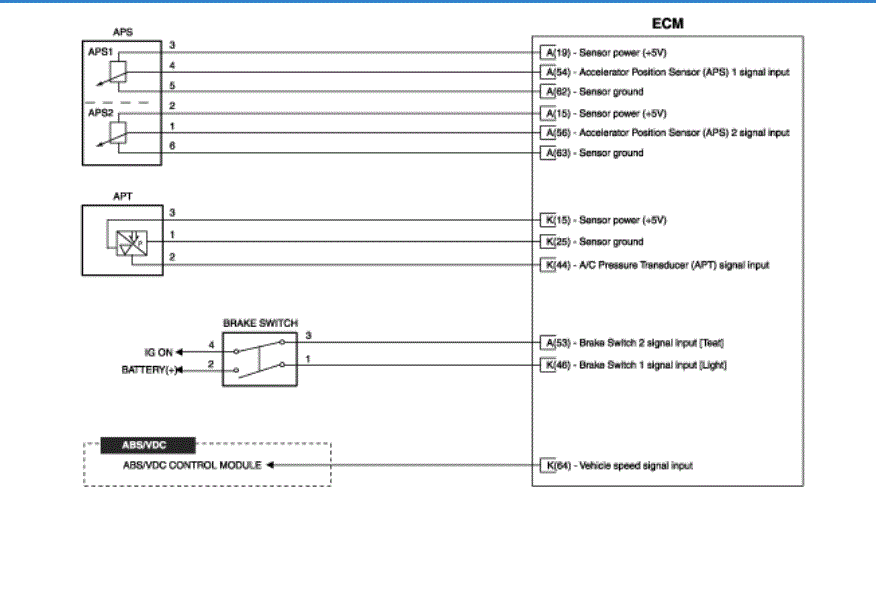

Fig 3: ECM Circuit Diagram (A/T) (3 Of 4)
G00575157Courtesy of HYUNDAI MOTOR AMERICA

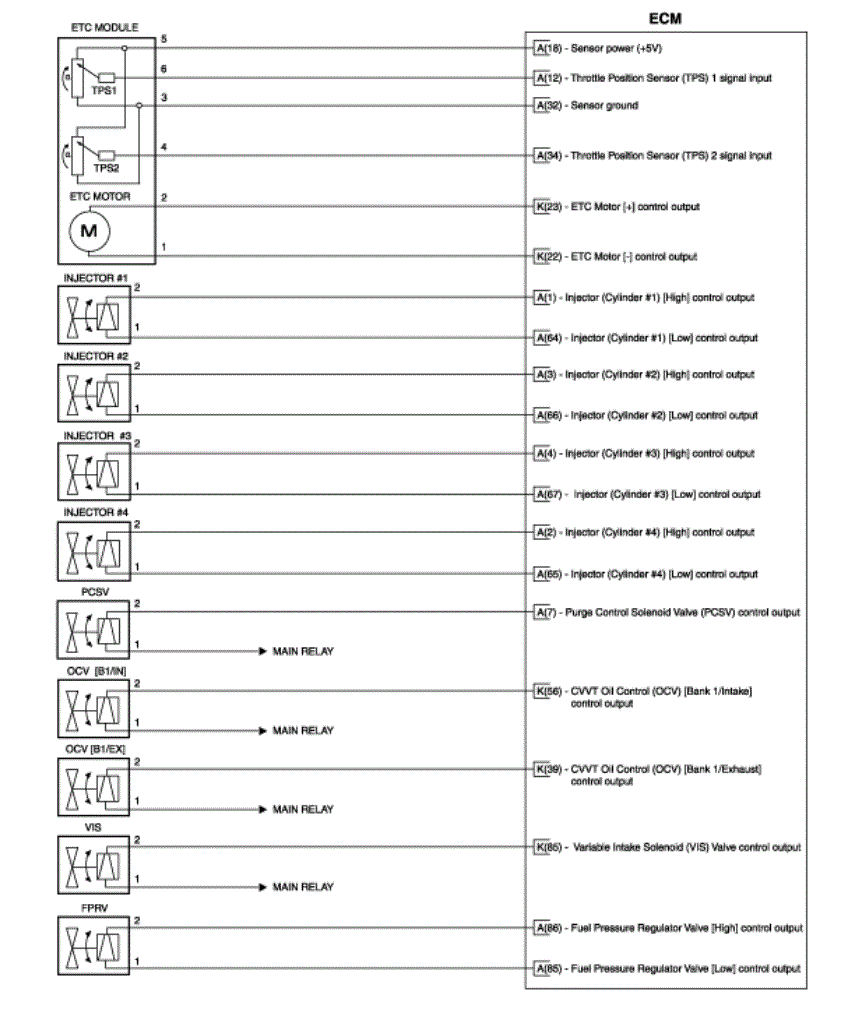

Fig 4: ECM Circuit Diagram (A/T) (4 Of 4)
G00575158Courtesy of HYUNDAI MOTOR AMERICA
