Repair procedures: Inspection: Notes

  1. Check the audio remote control switch for resistance between connector 3 and 4 in each switch position.

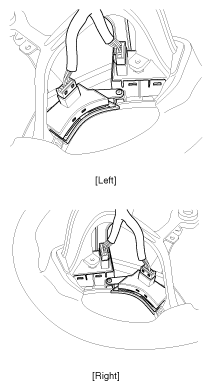

    Fig 1: Checking Audio Remote Control Switch For Resistance Between Connector 3 And 4 In Each Switch Position
    G10530728Courtesy of HYUNDAI MOTOR AMERICA
