Components and Components Location: Components

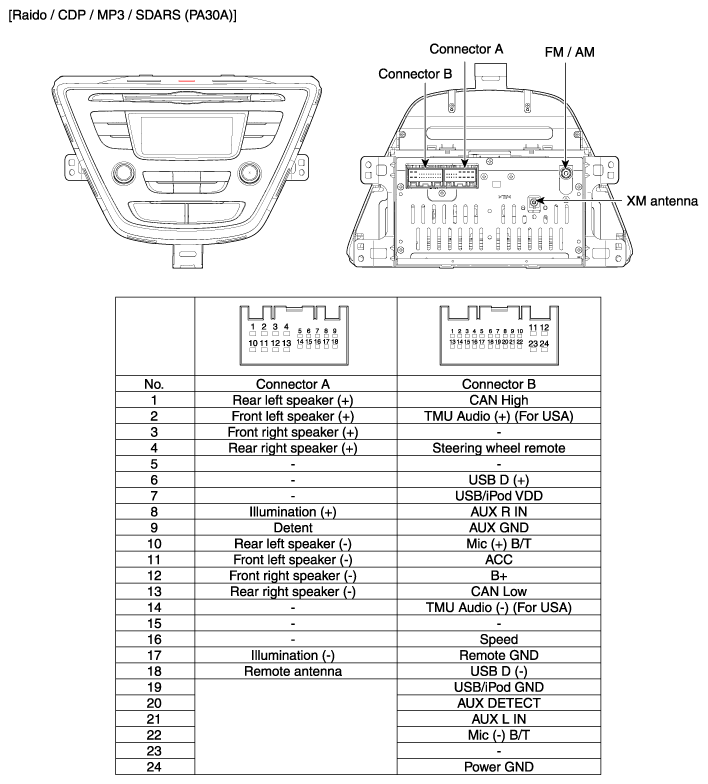

Fig 1: Audio Unit Components And Connector Terminal Identification (PA30A)

Courtesy of HYUNDAI MOTOR AMERICA

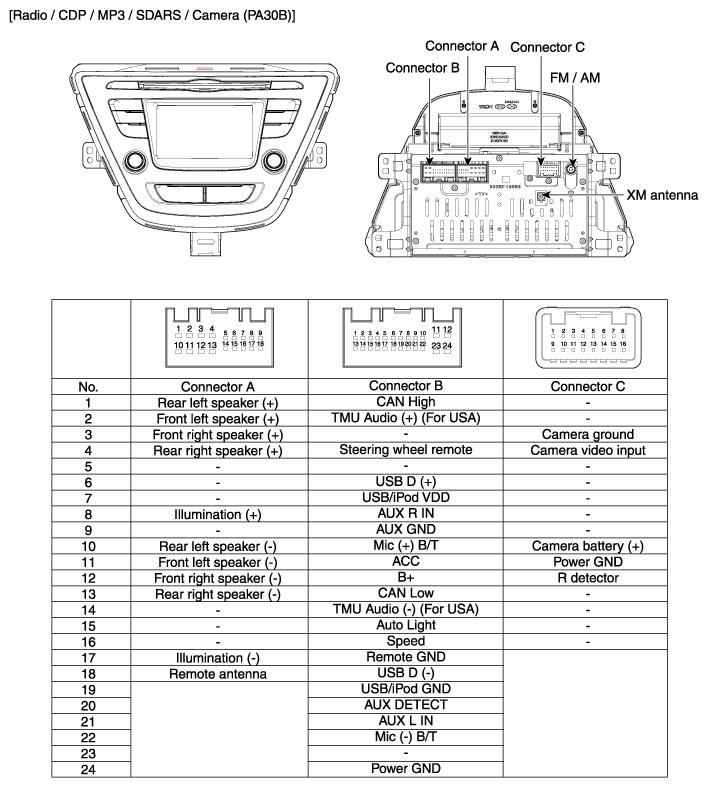

Fig 2: Audio Unit Components And Connector Terminal Identification (PA30B)

Courtesy of HYUNDAI MOTOR AMERICA
