Components and Components Location: Components: Notes

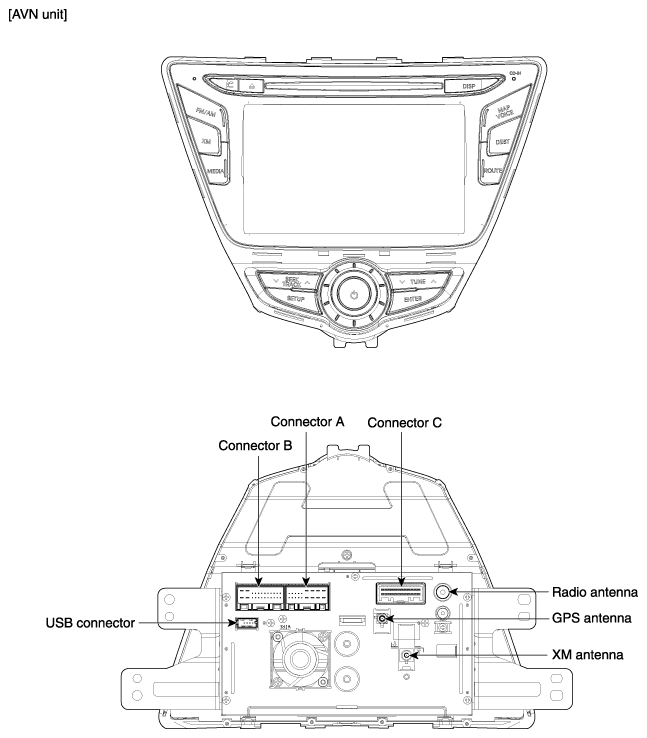

Fig 1: AVN Head Unit Components
G10530767Courtesy of HYUNDAI MOTOR AMERICA
