FOB Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "FOB KEY STATUS INFO".

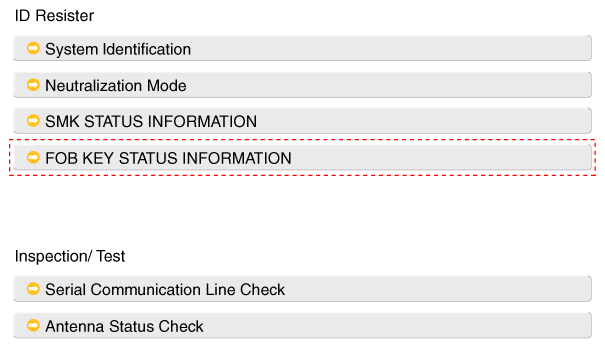

Fig 1: Scantool Display - Fob Key Status Information
Courtesy of HYUNDAI MOTOR AMERICA

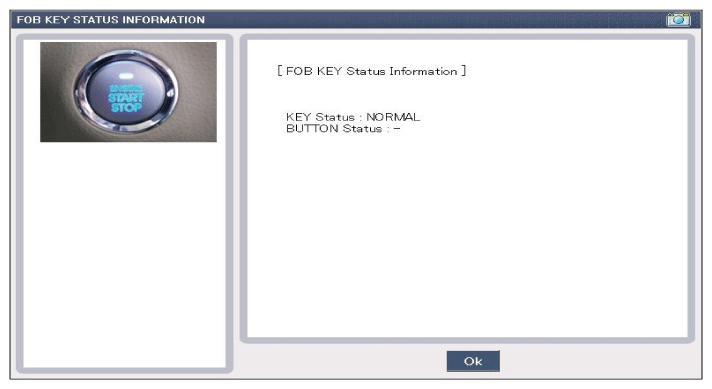

Fig 2: Scantool Display - Fob Key Status Information (After IGN ON)
Courtesy of HYUNDAI MOTOR AMERICA
