Components And Components Location: Components: [A/T]

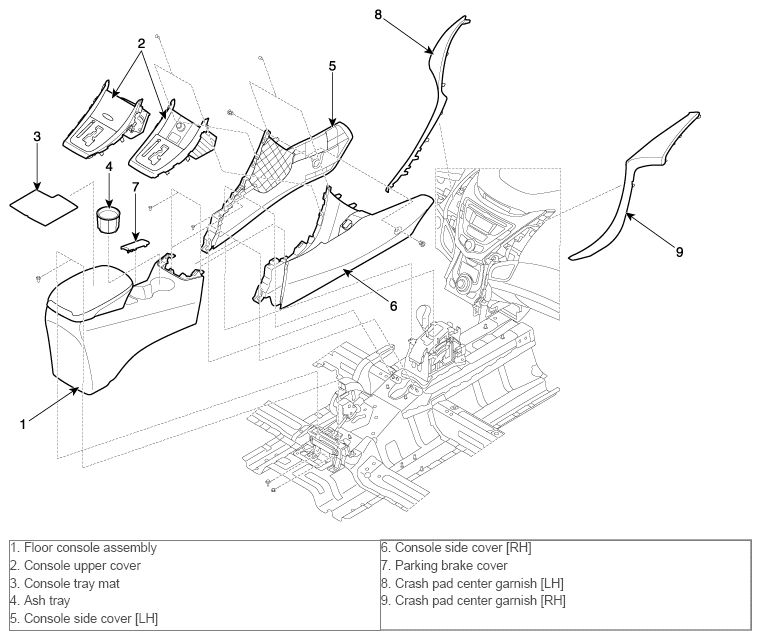

Fig 1: Console Component Locations (A/T)
G10534204Courtesy of HYUNDAI MOTOR AMERICA
