Home › Hyundai › 2016 › Elantra Value Edition › Repair and Diagnosis › Body & Frame › Windows › Interior Trim And Glass › Console › Components And Components Location › Components › [M/T]

Components And Components Location: Components: [M/T]

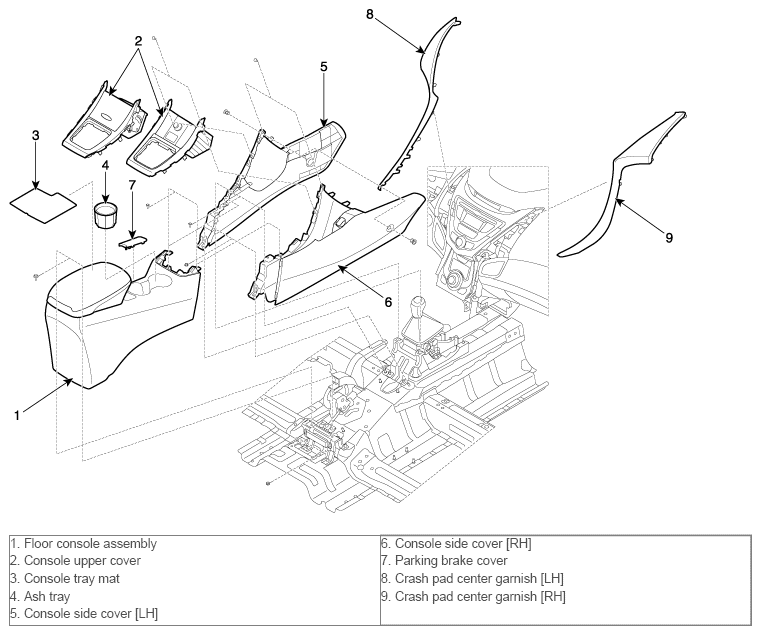

Fig 1: Console Component Locations (M/T)
G10534203Courtesy of HYUNDAI MOTOR AMERICA
