Driver Power Window Switch

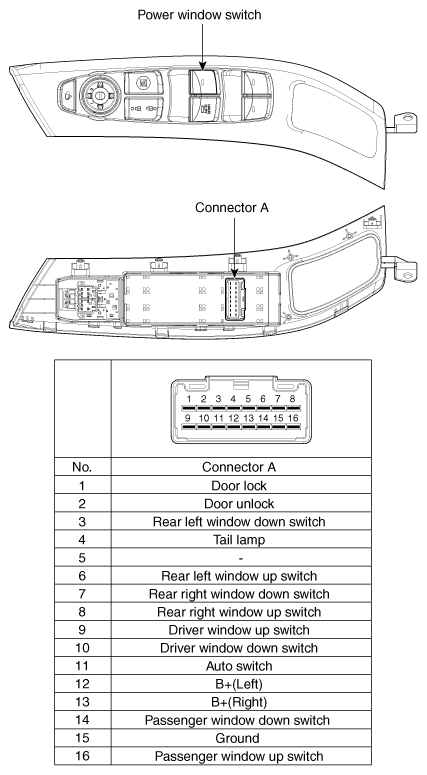

Fig 1: Driver Power Window Switch And Connector Terminal Identification
G10531060Courtesy of HYUNDAI MOTOR AMERICA
