Home › Hyundai › 2016 › Elantra Value Edition › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › Front Wheel Speed Sensor › Components And Components Location › Components

Components And Components Location: Components

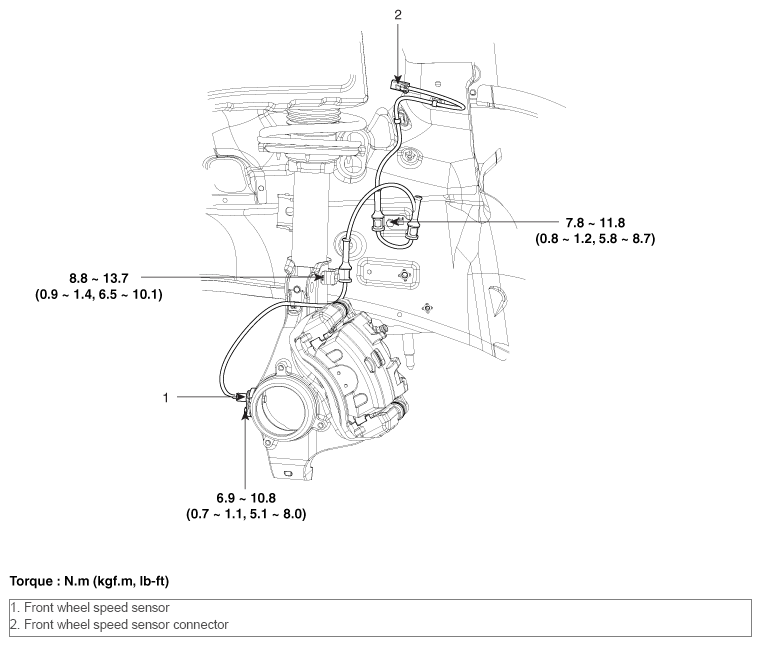

Fig 1: Front Wheel Speed Sensor Components With Torque Specifications
G10534089Courtesy of HYUNDAI MOTOR AMERICA
