Components and Components Location: Components

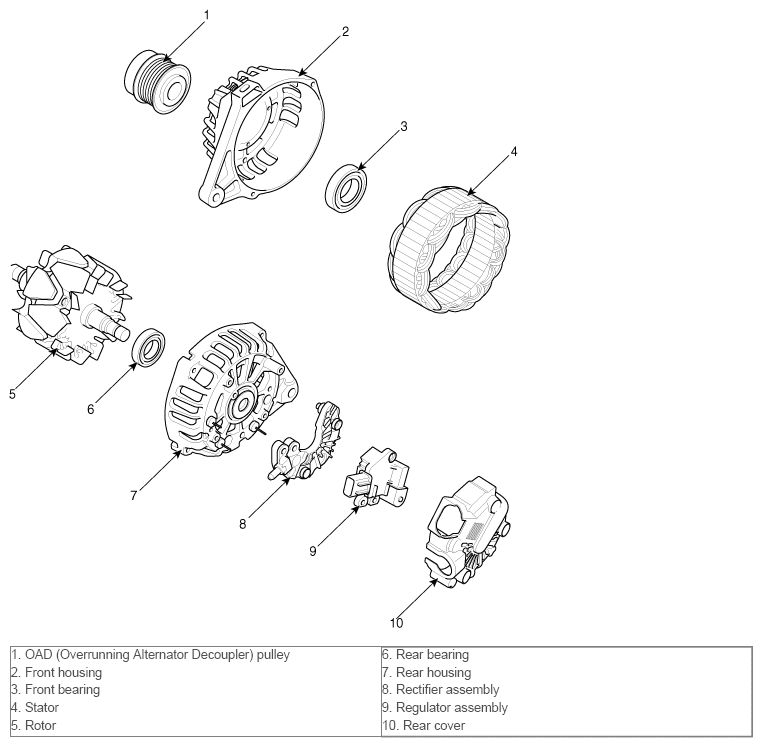

Fig 1: Alternator Components
G10533987Courtesy of HYUNDAI MOTOR AMERICA
