Home › Hyundai › 2016 › Elantra Value Edition › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Battery › Components and Components Location › Components

Components and Components Location: Components

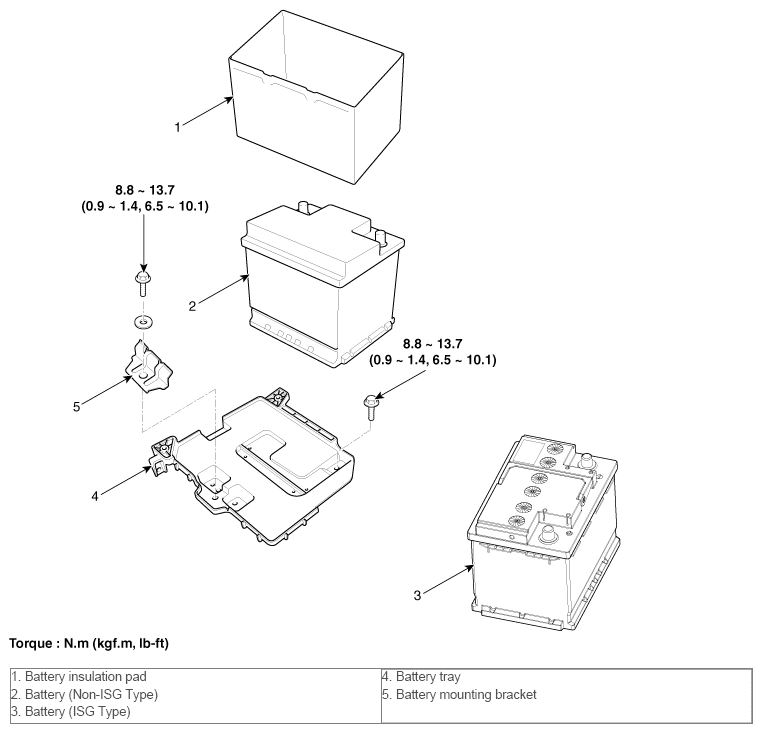

Fig 1: AGM Battery Components With Torque Specification
G10534009Courtesy of HYUNDAI MOTOR AMERICA
