Home › Hyundai › 2016 › Elantra Value Edition › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Components and Components Location › Component

Components and Components Location: Component

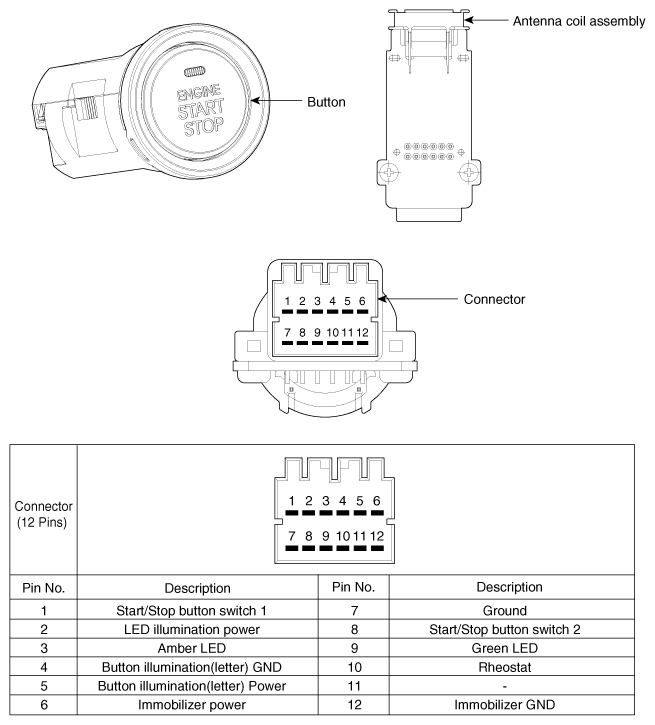

Fig 1: Start/stop Button Components And Connector Terminal Identification
G10531267Courtesy of HYUNDAI MOTOR AMERICA
