Components and Components Location: Components

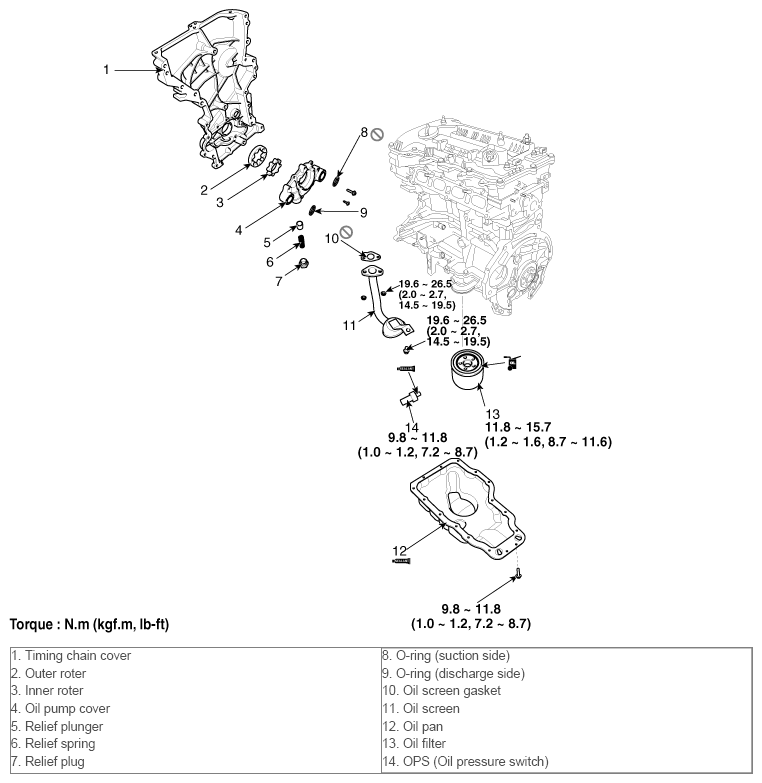

Fig 1: Oil Pump Components With Torque Specification
G10533867Courtesy of HYUNDAI MOTOR AMERICA
