Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

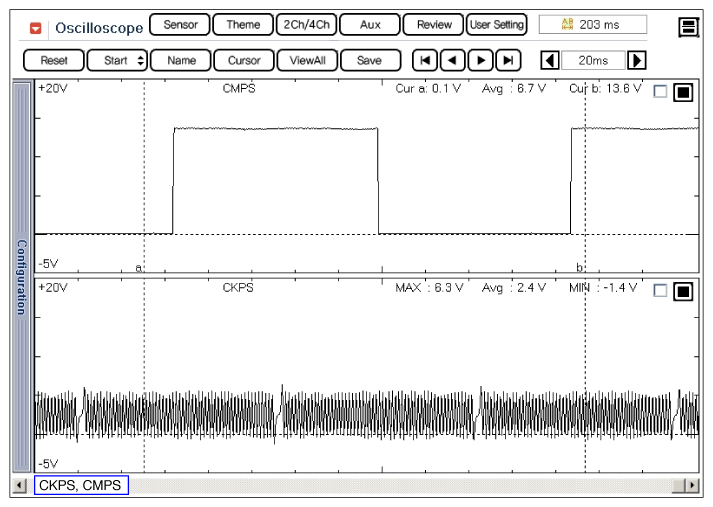

Fig 1: Screen Display - CMPS And CKPS Waveform (1 Of 2)
G10537668Courtesy of HYUNDAI MOTOR AMERICA

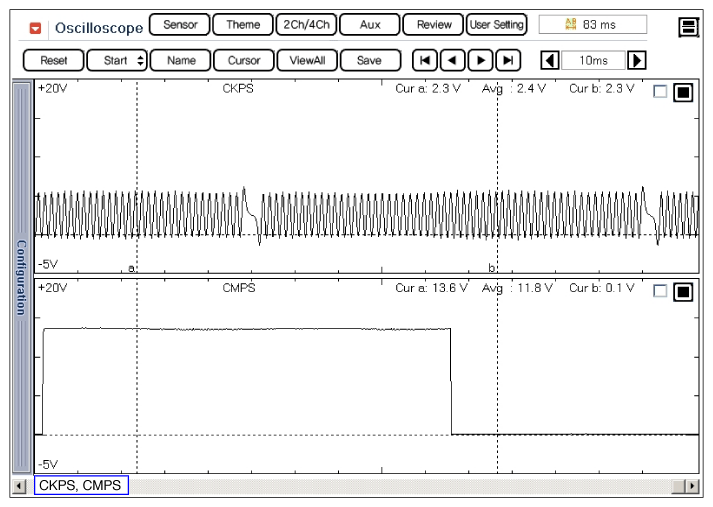

Fig 2: Screen Display - CMPS And CKPS Waveform (2 Of 2)
G10537669Courtesy of HYUNDAI MOTOR AMERICA
