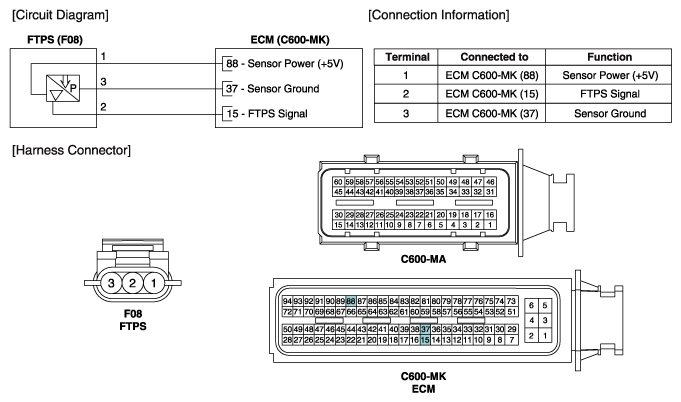

Home › Hyundai › 2016 › Elantra Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.8L › Fuel Tank Pressure Sensor (FTPS) › Schematic Diagrams › Circuit Diagram › (M/T)
