Engine Control System Diagnosis - 1.8L (1 Of 2)
›
DTC P0136: O2 Sensor Circuit (Bank 1/Sensor 2)
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

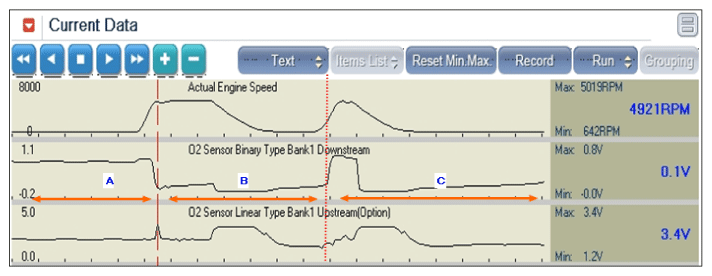

Fig 1: Scantool Display - Signal Waveform In Current Data
Courtesy of HYUNDAI MOTOR AMERICA
Sector A: Signal Normal
Sector B: Signal Fluctuation
Sector C: Signal Recovery
Courtesy of HYUNDAI MOTOR AMERICA
