Antenna Status Check

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

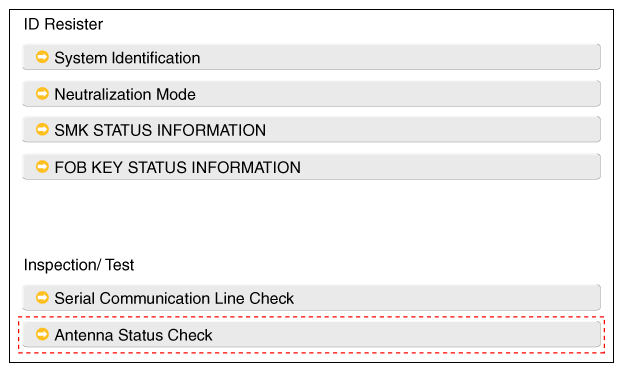

    Fig 1: Screen Display - ID Register
    G10751350Courtesy of HYUNDAI MOTOR AMERICA
  3. After IG ON, select the "Antenna Status Check".

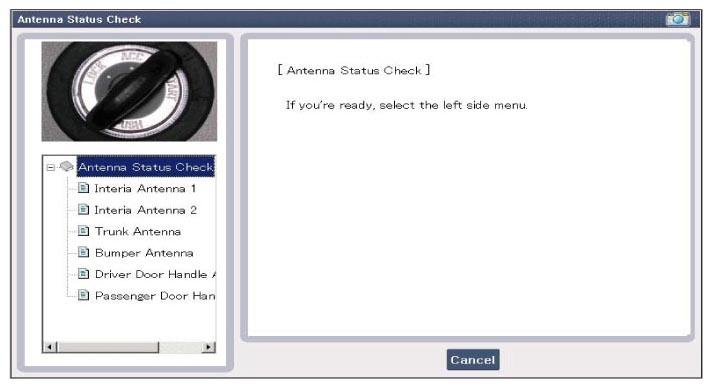

    Fig 2: Screen Display - Antenna Status Check
    G10751351Courtesy of HYUNDAI MOTOR AMERICA
  4. Set the smart key near the related antenna and operate it with a GDS.

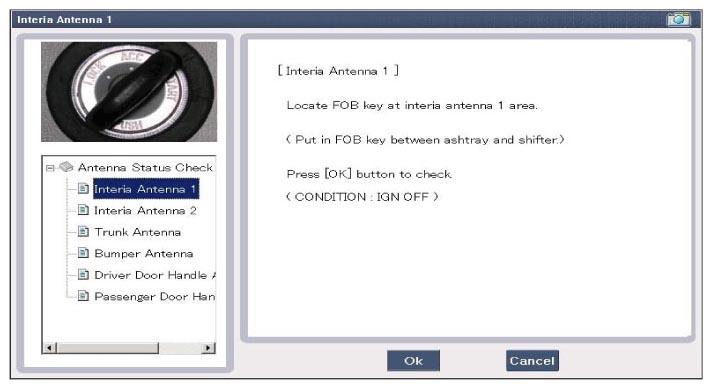

    Fig 3: Screen Display - Interia Antenna 1
    G10751352Courtesy of HYUNDAI MOTOR AMERICA

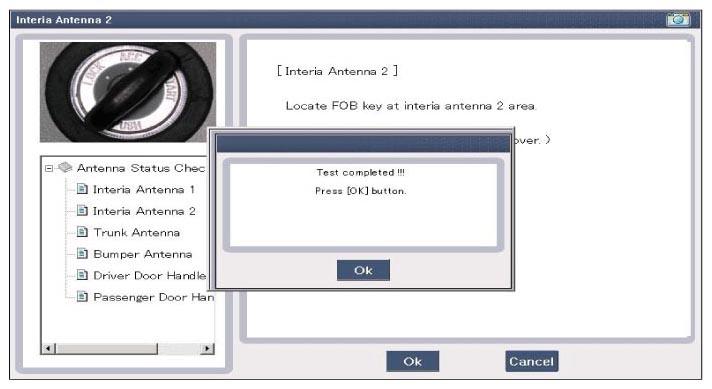

    Fig 4: Screen Display - Interia Antenna 2 (Test Completed)
    G10751353Courtesy of HYUNDAI MOTOR AMERICA
  5. If the Smart Key runs normal, the related antenna, Smart Key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. Trunk antenna
    4. BUMPER/Antenna
    5. DRV_DR Antenna
    6. AST_DR Antenna
