Repair Procedures: Replacement

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a Recovery/Recycling/Charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the front bumper cover.

    (Refer to: Body - "FRONT BUMPER COVER ").

  4. Disconnect the discharge line (A) and liquid line (B) from the condenser.

    Tightening Torque:

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.7 lb-ft)

    Fig 1: Condenser Discharge And Liquid Lines
    G10751890Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the air guard (A).
    Fig 2: Removing Air Guard
    G10751891Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the radiator upper mounting bracket bolts (A).
    Fig 3: Radiator Upper Mounting Bracket Bolts Location
    G10751892Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the radiator lower mounting insulator (A).
    Fig 4: Removing Radiator Lower Mounting Insulator
    G10751893Courtesy of HYUNDAI MOTOR AMERICA

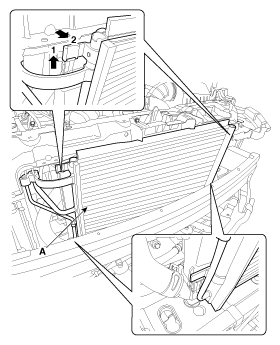

  8. Remove the condenser (A) from the radiator.
    Fig 5: Removing Condenser From Radiator
    G10751894Courtesy of HYUNDAI MOTOR AMERICA
  9. Install in the reverse order of removal.
    NOTE:
    • If you're installing a new condenser, add refrigerant oil (PAG OIL).
    • Replace the O-Rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-Rings for R-134a to avoid leakage.
    • Be careful not to damage the radiator and condenser fins when installing the condenser.
    • Be sure to install the lower mount cushions of condenser securely into the holes.

    Information

    • Charge the system, and test its performance.
