Components and Components Location: Components

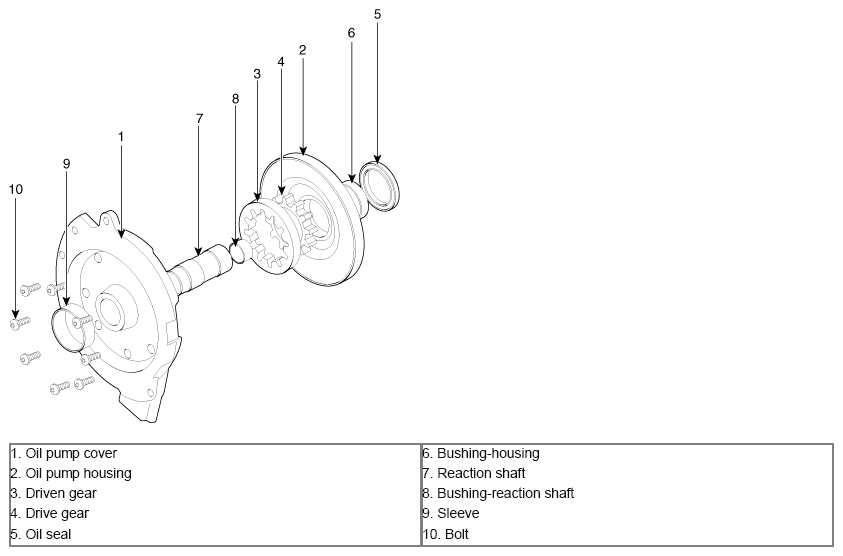

Fig 1: Oil Pump Components
G10537965Courtesy of HYUNDAI MOTOR AMERICA
