Automatic Transaxle Control System - A6GF1
›
Inhibitor Switch
›
Repair procedures
›
Inspection flow
Inspection flow

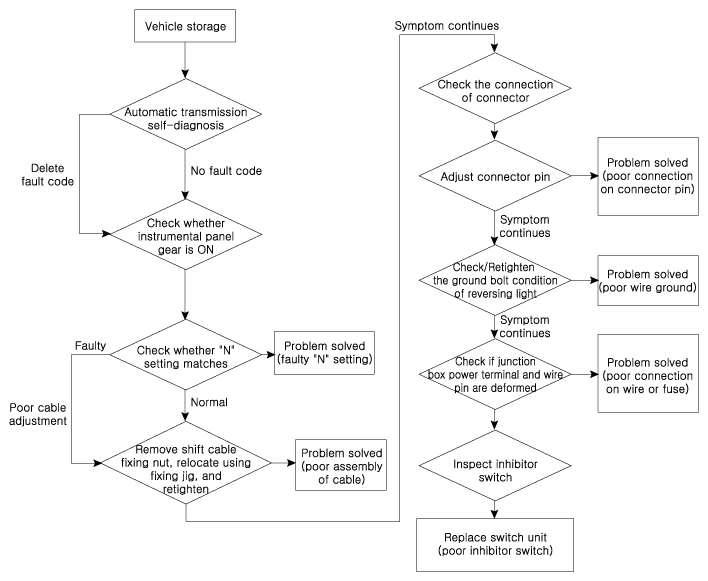

Fig 1: Inhibitor Switch Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
