Elantra Value Edition
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - A6GF1
›
Input Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

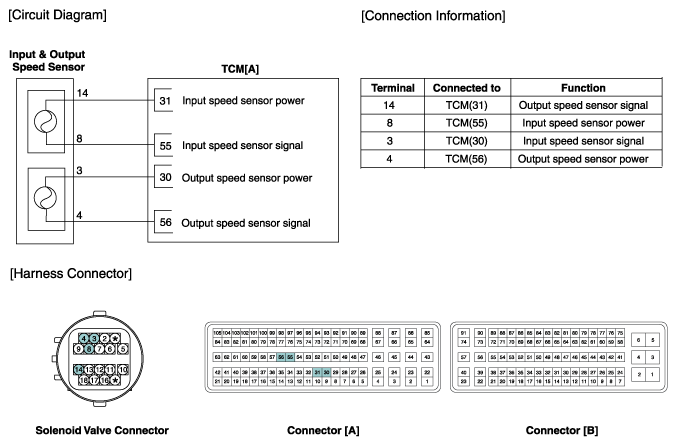

Fig 1: Input And Output Speed Sensor Circuit Diagram And Connector Terminal Identification
