Components and Components Location: Components

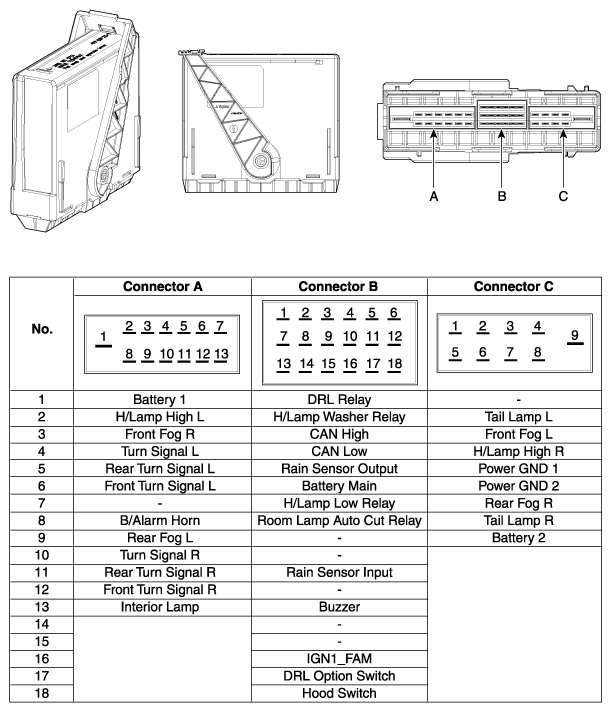

Fig 1: Front Area Module (FAM) Component And Connector Terminal Identification
G10387591Courtesy of HYUNDAI MOTOR AMERICA
