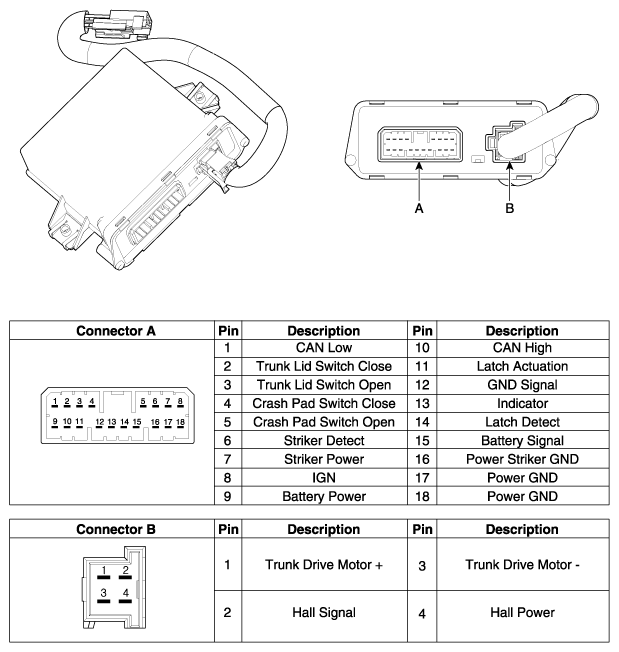

Home › Hyundai › 2016 › Equus Signature › Repair and Diagnosis (Single Page) › Accessories & Equipment › Communication Devices › Power Trunk Module › Power Trunk Module Drive Unit › Schematic Diagrams › Circuit Diagram
