Components and Components Location: Components

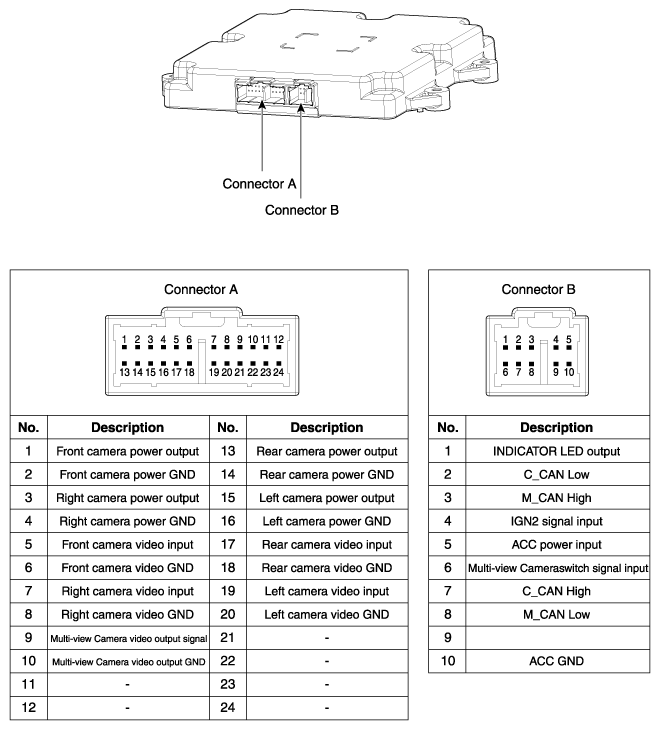

Fig 1: Multi-View Camera Unit And Connector Terminal Identification
G10387525Courtesy of HYUNDAI MOTOR AMERICA
