Smart Key Control Module Connector End View (M30-A)

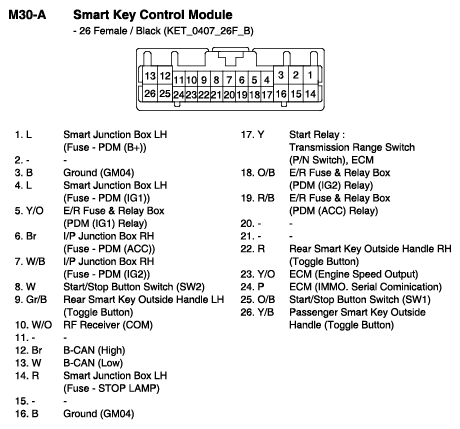

Fig 1: Smart Key Control Module Connector End View (M30-A)
G10769837Courtesy of HYUNDAI MOTOR AMERICA
