Smart Key Control Module Connector End View (M30-B)

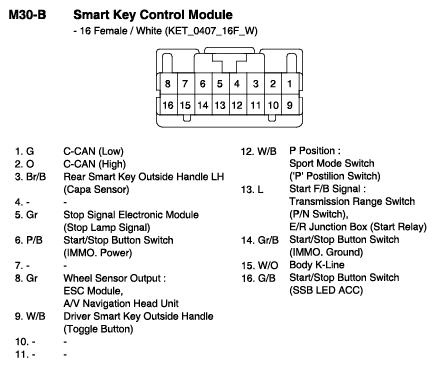

Fig 1: Smart Key Control Module Connector End View (M30-B)
G10769838Courtesy of HYUNDAI MOTOR AMERICA
