FOB Status Check: Notes

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "FOB KEY STATUS INFO".

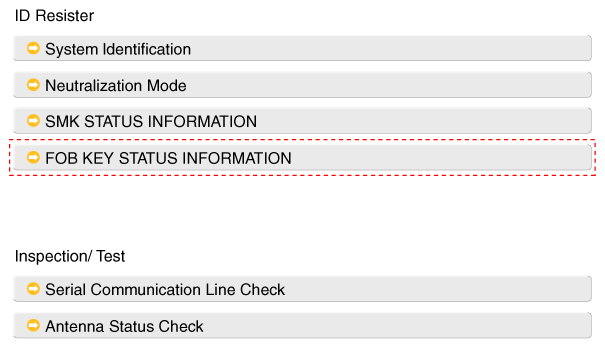

Fig 1: Display - FOB Key Status Information ID Register Screen
Courtesy of HYUNDAI MOTOR AMERICA

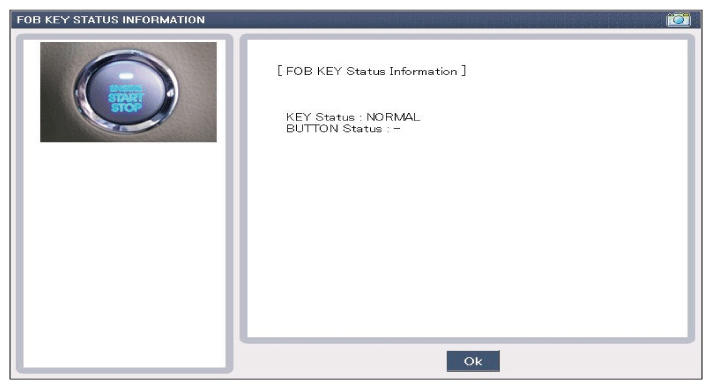

Fig 2: Display - FOB Key Status Information Screen
Courtesy of HYUNDAI MOTOR AMERICA
