Home › Hyundai › 2016 › Equus Signature › Repair and Diagnosis › Body & Frame › Seats › Front Seat › Components and Components Location › Components

Components and Components Location: Components

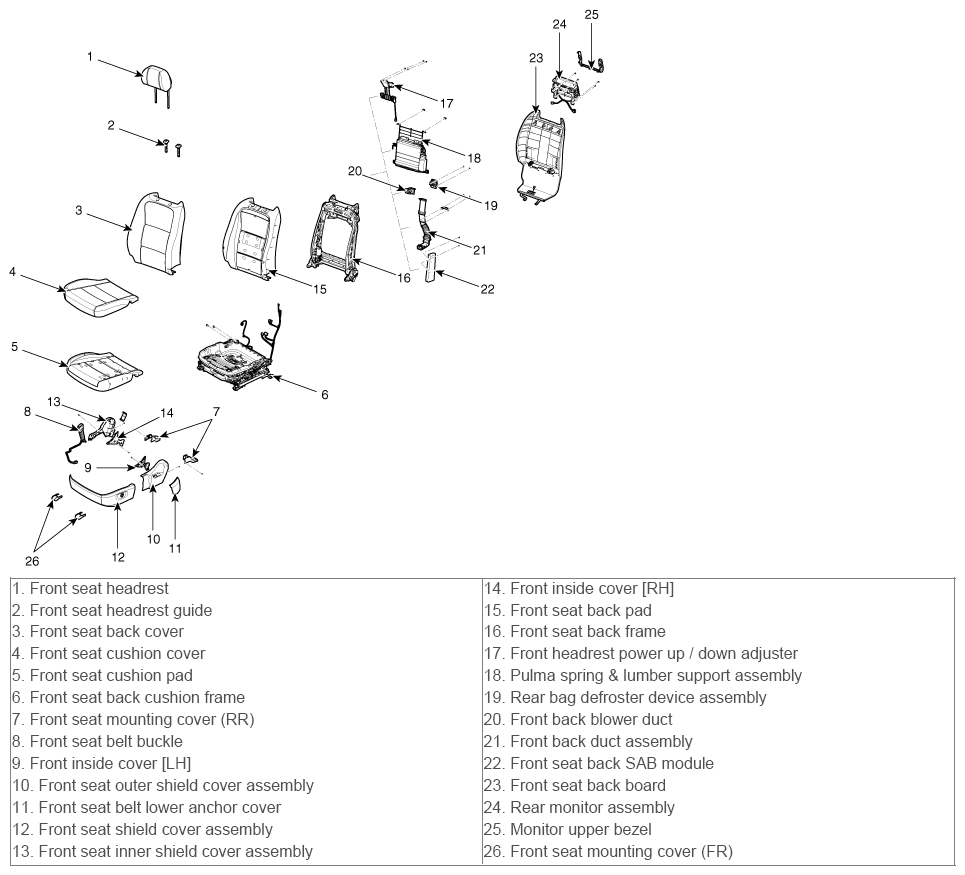

Fig 1: Front Seat Components
G10386749Courtesy of HYUNDAI MOTOR AMERICA
