Power Window Main Switch

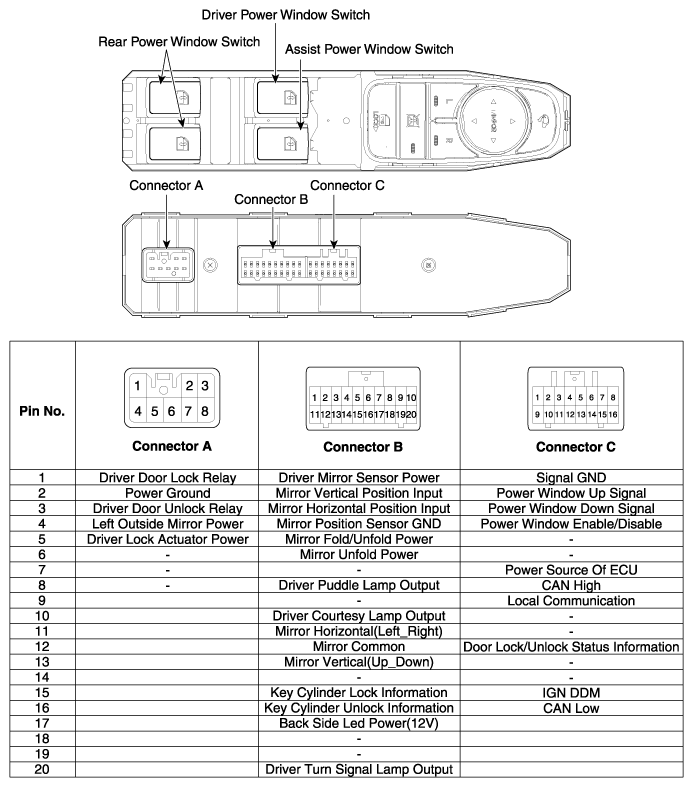

Fig 1: Power Window Main Switch And Connector Terminal Identification
G10387289Courtesy of HYUNDAI MOTOR AMERICA
