Components and Components Locations: Component

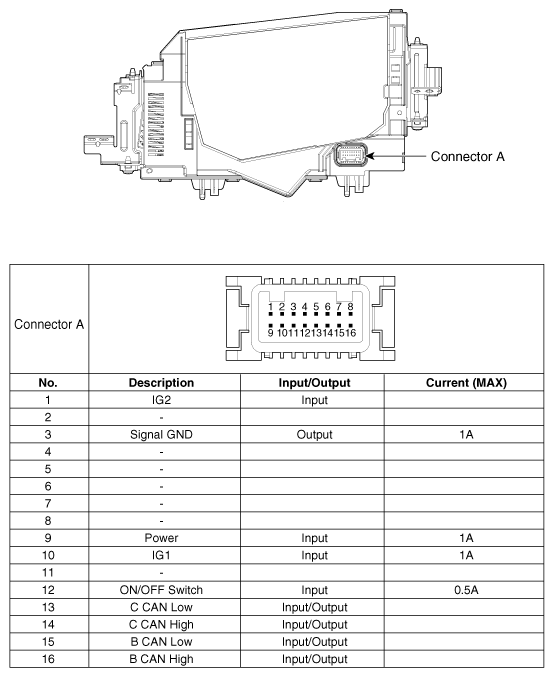

Fig 1: Head Up Display Unit And Connector Terminal Identification
G10387645Courtesy of HYUNDAI MOTOR AMERICA
