Components Location

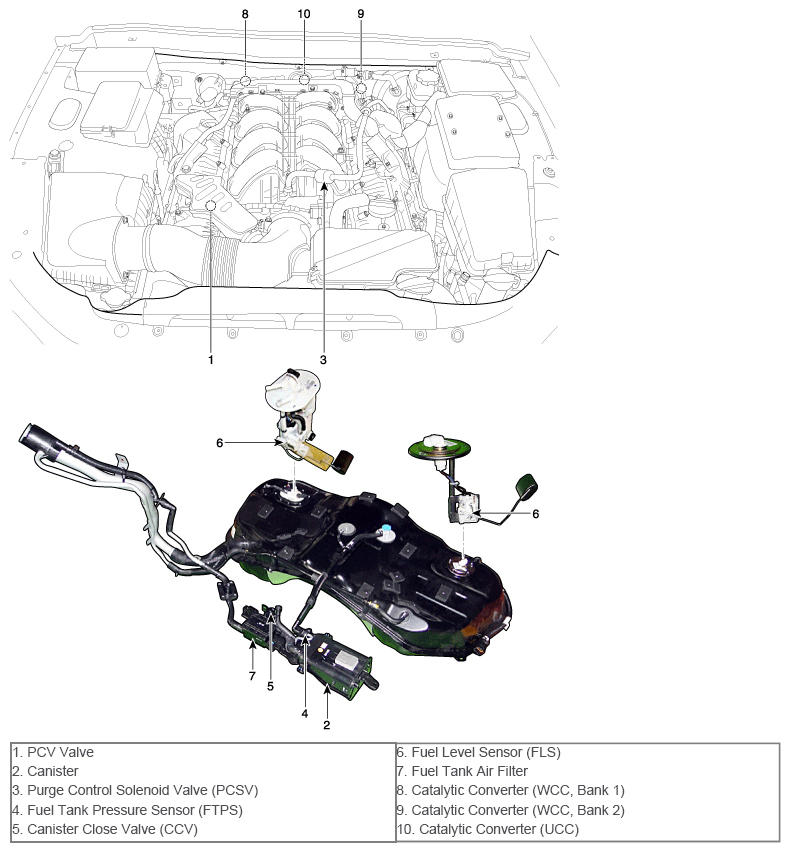

Fig 1: Emission Control System Component Locations (1 Of 2)
G10382577Courtesy of HYUNDAI MOTOR AMERICA

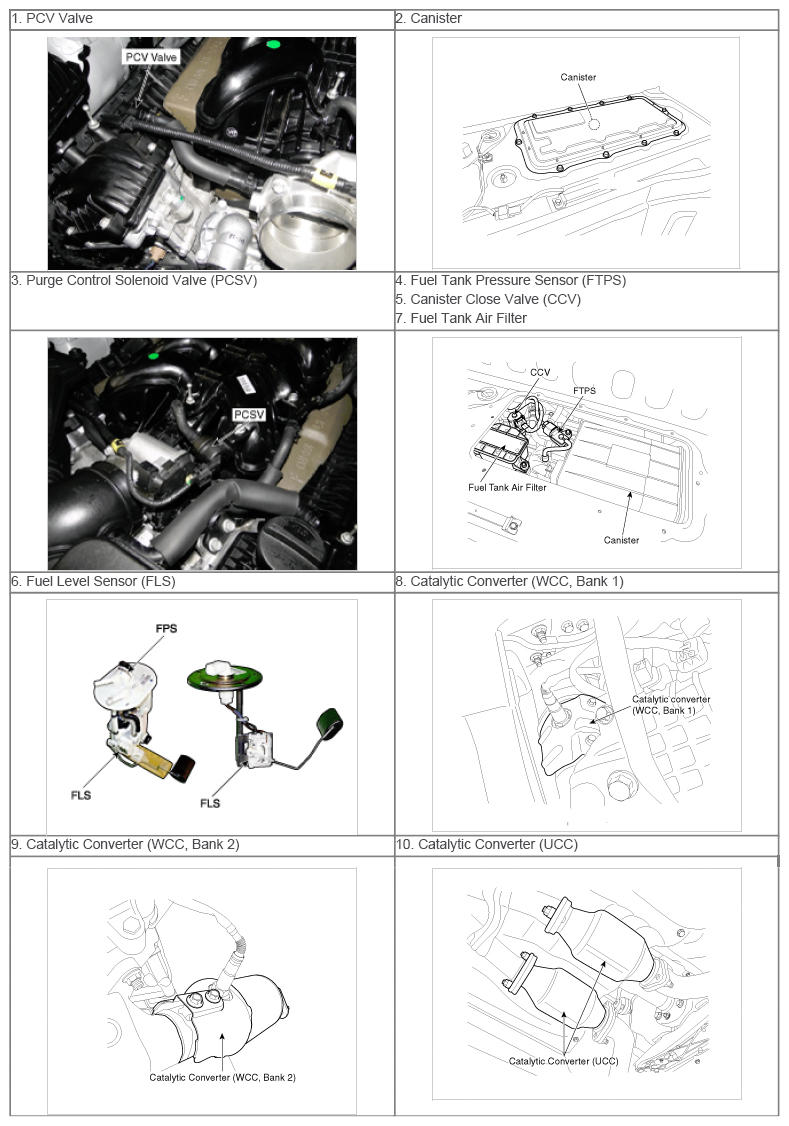

Fig 2: Emission Control System Component Locations (2 Of 2)
G10382578Courtesy of HYUNDAI MOTOR AMERICA
