Components and Components Location: Components

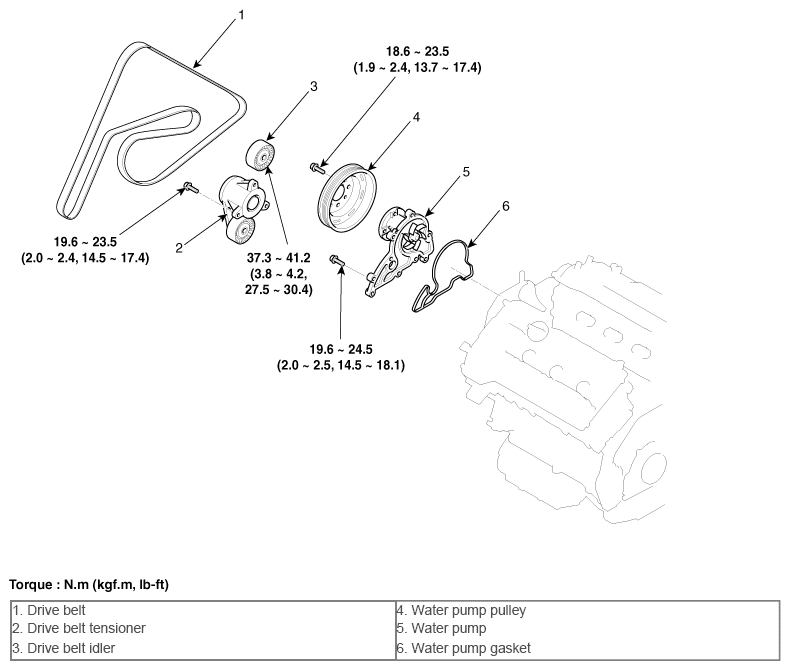

Fig 1: Water Pump Components With Torque Specifications
G10382361Courtesy of HYUNDAI MOTOR AMERICA
