Home › Hyundai › 2016 › Equus Signature › Repair and Diagnosis › Engine Mechanical › Lubrication System › Oil Pump › Components and Components Location › Components

Components and Components Location: Components

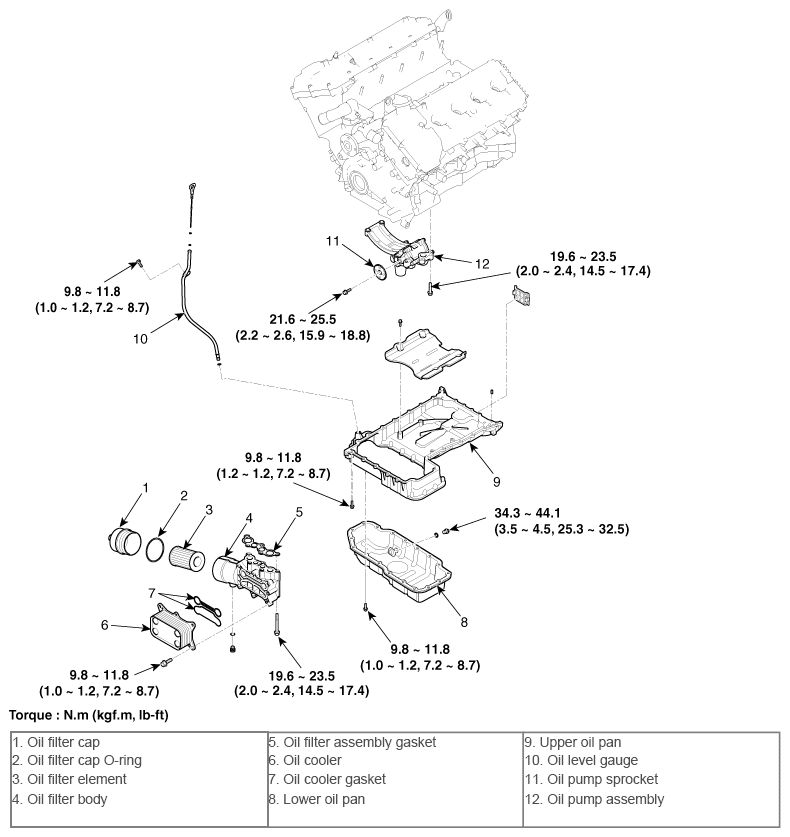

Fig 1: Oil Pump Components With Torque Specifications
G10382380Courtesy of HYUNDAI MOTOR AMERICA
