Components and Components Location: Components

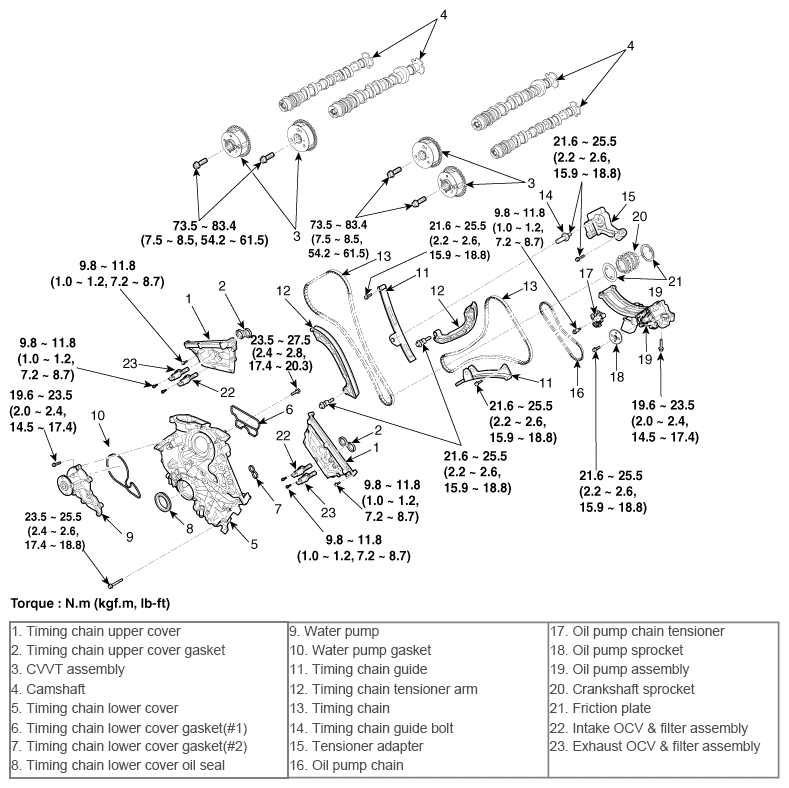

Fig 1: Timing System Components With Torque Specifications
G10382048Courtesy of HYUNDAI MOTOR AMERICA
