Camshaft Position Sensor (CMPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

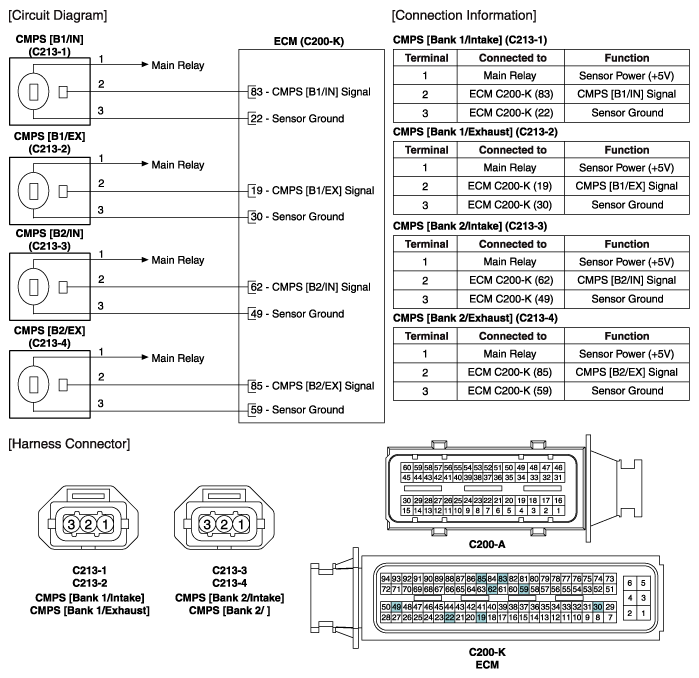

Fig 1: Camshaft Position Sensor (CMPS) Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
